Floating IPs

A floating IP (FIP) is a public IPv4 address you allocate to your project and attach to a VM. That's the single step that turns a private, internal-only VM into one anyone on the internet can reach at a fixed address.

Two things to know:

  • Floating IPs are billed while allocated, whether the VM is running or not. Release the ones you're not using.
  • Attaching or detaching is fast and doesn't touch the VM. You can move an FIP from one VM to another in seconds — great for blue/green cutovers and zero-downtime replacements.

Where they live​

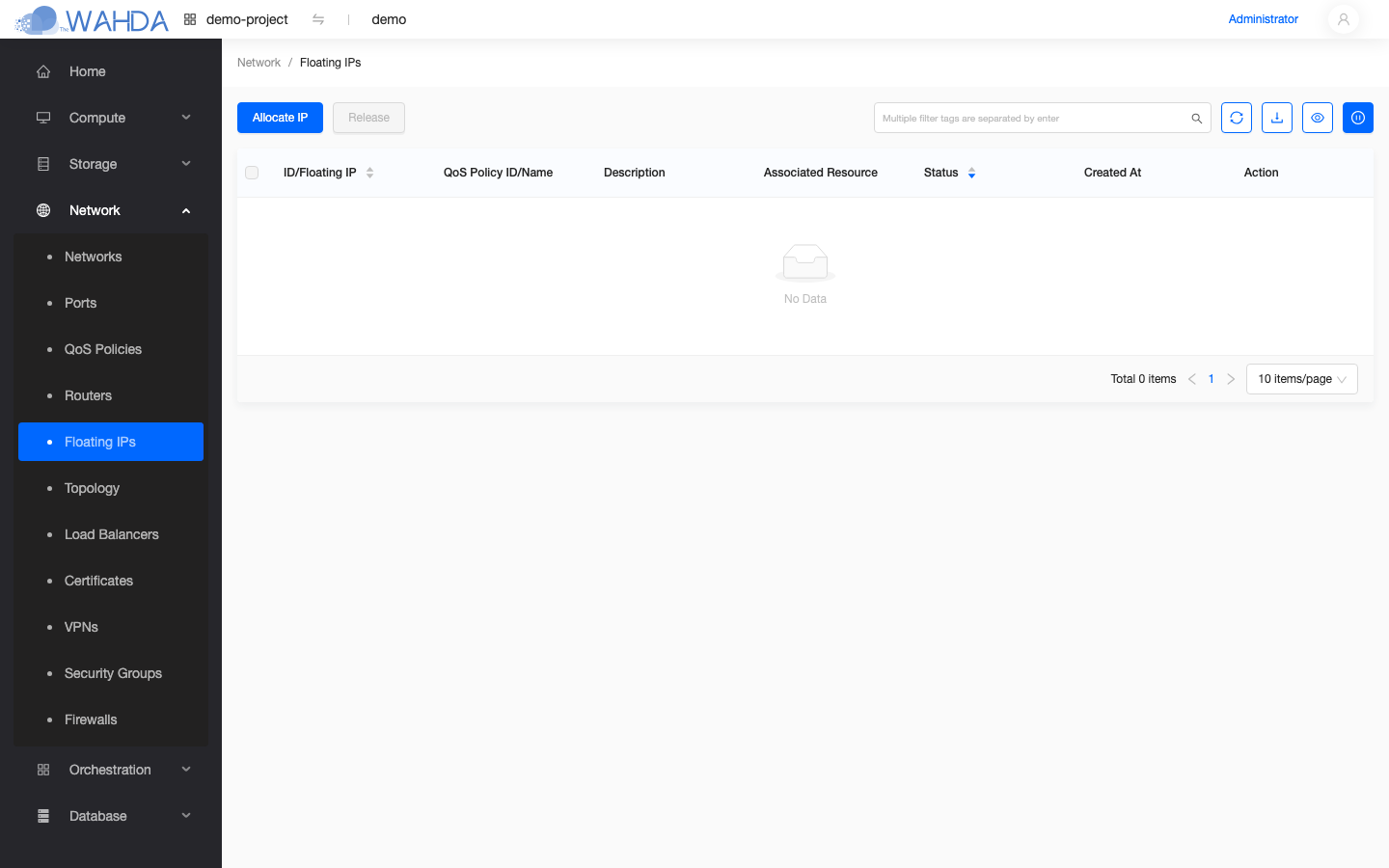

From the left navigation: Network → Floating IPs. The page lists every FIP allocated to the current project.

A fresh project has none. Click Allocate IP to reserve one from the public pool.

Header buttons: Allocate IP (reserve a fresh one), Release (give the selected one back). Each row's Associated Resource column shows which VM (if any) the FIP is currently attached to.

Allocate one​

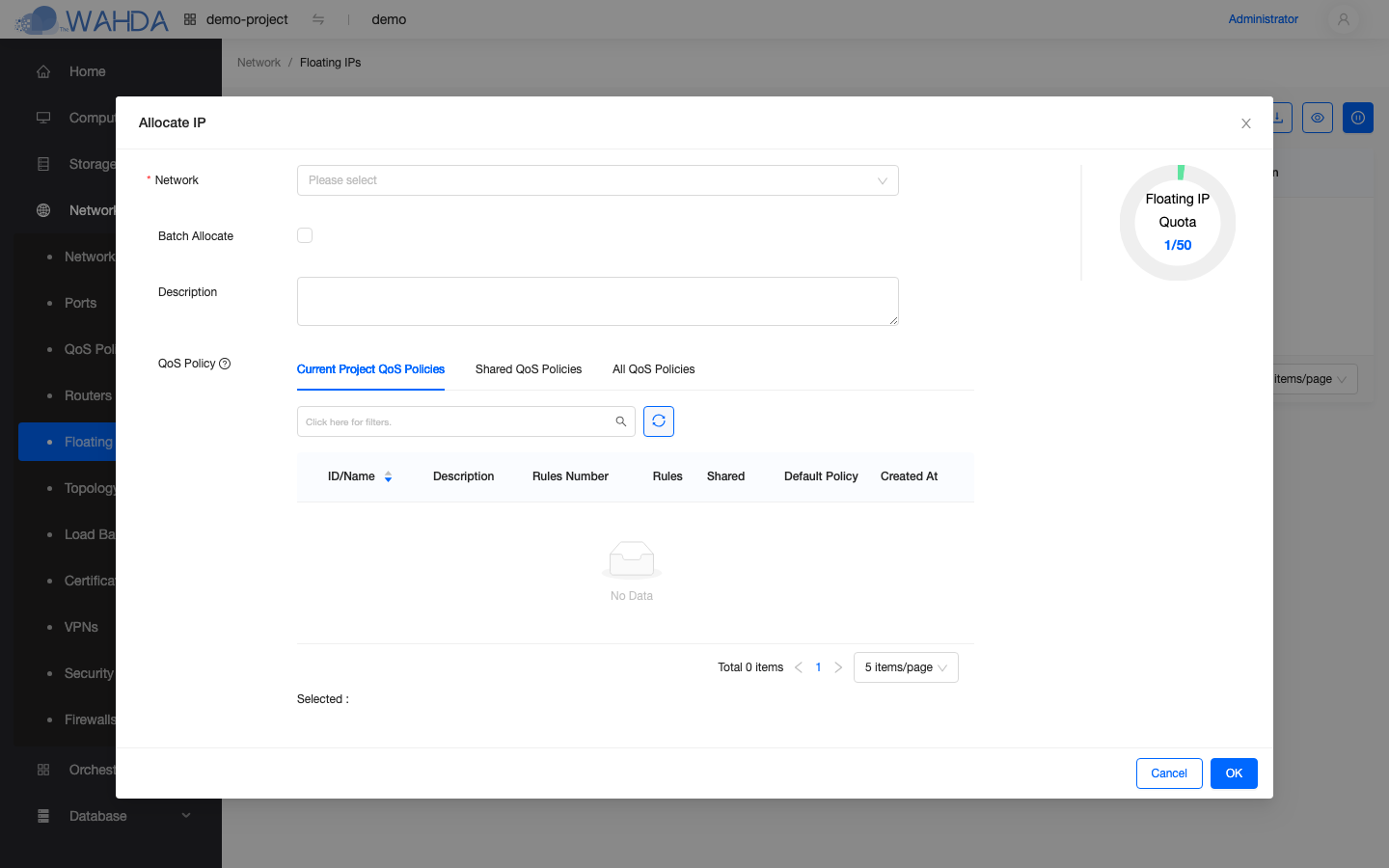

Click Allocate IP.

Pick the external network and click OK. The platform hands back the next available public address.
FieldWhat to enter
NetworkPick Public1 — the platform's external network. This is the only source of public IPv4 on The Wahda Cloud today.
Batch AllocateOptional — tick this and enter a count if you need several at once.
DescriptionOptional — a short reminder of what the IP is for (web-prod, bastion, staging-lb). Handy when the list grows.
QoS PolicyAdvanced — apply a bandwidth-cap or DSCP policy. Leave empty unless you know you need one.

Click OK. A new IP appears in the list, Associated Resource empty, ready to attach.

:::note What "the pool" means Public IPv4 is a global scarce resource. The platform holds a pool of addresses from 165.99.104.0/24 and hands them out one at a time. If an allocation ever fails with "no address available", email info@thewahda.com — the pool gets grown regularly and we'll bump it for you. :::

Attach it to a VM​

The IP by itself does nothing. You need to attach it to a specific VM's private-network port.

Two paths:

From the Floating IPs page​

  1. On the FIP row, click More → Associate.
  2. Pick the target VM's port from the dropdown.
  3. Click OK. The IP is now live on that VM. Test it: ping <fip> from your laptop.

From the VM's detail page​

  1. Open Compute → Instances → your VM.
  2. In More Actions, pick Associate Floating IP.
  3. Pick an FIP from the list (or allocate a fresh one inline).
  4. Click OK.

Both paths do the same thing under the hood.

:::caution SSH still needs an open port Attaching a floating IP is only half the job. If your security group doesn't allow inbound port 22, SSH still times out. Open the port in Security groups → and attach the FIP. :::

Detach — or move to another VM​

Same More → Disassociate action from the list (or Disassociate Floating IP on the VM). The IP stays allocated to your project — it just isn't attached to anything.

To move an FIP to a different VM, disassociate first, then associate to the new target. The switch is atomic: seconds, no rebooting either VM.

This is exactly the shape you want for zero-downtime deploys — bring up the new VM, health-check it, move the FIP, then delete the old VM.

Release (give it back)​

When you're done with an IP, release it — otherwise you keep paying for it.

On the row, select and click Release in the header. The IP goes back into the pool for the next project. Any resource still using it must be detached first; the platform refuses the release otherwise.

Port forwarding — one FIP, many services​

If you have a single floating IP but multiple internal services on different VMs, port forwarding lets you expose each service on a different external port through the same FIP. No load balancer, no bastion — the router does the DNAT.

Typical shape:

  • 165.99.104.42:80 → 10.0.0.15:80 (web VM)
  • 165.99.104.42:2222 → 10.0.0.16:22 (bastion, SSH on a non-standard port)
  • 165.99.104.42:5432 → 10.0.0.17:5432 (dev database, restrict source CIDR!)

Port forwarding is available on any allocated floating IP that is not attached to a VM as a whole — the FIP either forwards the whole address to one VM, or it forwards individual ports to different backends. Not both.

Fields per rule​

FieldWhat it means
ProtocolTCP or UDP.
External portThe port on the FIP you're exposing (e.g. 80, 2222, 5432). Ranges (8000:8010) supported.
Internal IPThe private address of the target VM on your project network.
Internal portThe port on the VM (typically 80, 22, 5432). Blank for the whole range if you used an external port range.
DescriptionOptional — what the rule forwards to, useful once the list grows.

When to use port forwarding vs. load balancer vs. bastion​

SituationBest tool
One public port, one backend VMAttach the FIP whole to the VM.
Multiple ports on one FIP, each to a different VMPort forwarding.
Multiple backends serving the same port (HA)Load balancer.
Console-style SSH access to many private VMsBastion — see Connect over SSH.

:::caution Port forwarding is a firewall bypass — restrict source CIDRs Every port you expose bypasses whatever security group is on the target VM's port. If you forward port 5432 to a database VM, do not leave source-CIDR as 0.0.0.0/0 — pin it to your office egress or your app tier's CIDR at minimum. The router-level rule is your only line of defence for that traffic. :::

Reverse DNS / PTR records​

By default, the reverse DNS for an FIP points at a generic hostname the platform owns. If you're running mail (SMTP) or anything else that checks PTR alignment, request a PTR record pointing at your domain — email info@thewahda.com with the FIP and the hostname you want.

Common patterns​

PatternHow it looks
Single public web serverOne VM, one FIP. Attach → open 80/443 in the security group → done.
Load-balanced serviceOne FIP on the load balancer, zero FIPs on the backends. Backends stay private and unreachable directly.
Bastion + private VMsOne FIP on the bastion (with port 22 open to your office CIDR), no FIPs on anything else. Reach private VMs via ssh -J bastion — see Connect over SSH.
Zero-downtime deployTwo VMs, one FIP. Health-check the new VM, disassociate the FIP from the old one, associate to the new one.

Troubleshooting​

SymptomMost likely cause
Destination host unreachable on pingThe FIP is allocated but not attached to a VM. Attach it.
Request timed out on ping and SSHFIP is attached, but the security group blocks ICMP (ping) and/or TCP 22. Open the ports.
SSH works but HTTP doesn'tSame FIP, wrong port in the security group. Open 80/443.
"The FIP was reachable, now it's not"Someone detached it, or moved it to a different VM. Check Associated Resource on the list.
"Someone else has our IP"An IP you released was reassigned to another project. Public IPv4 is a shared pool. Book the ones you plan to keep.
