Security groups
A security group is a stateful firewall attached to a VM. It's the single mechanism that decides whether a packet is allowed to reach the VM. Every VM must have at least one security group; you attach them in Step 2 of the Create VM wizard.
Two things to know before you touch this page:
- Everything is deny-by-default. A brand-new VM answers nothing until you explicitly open a port.
- Rules are stateful. If you allow inbound TCP 22, the reply traffic is allowed automatically — no return-path rule needed.

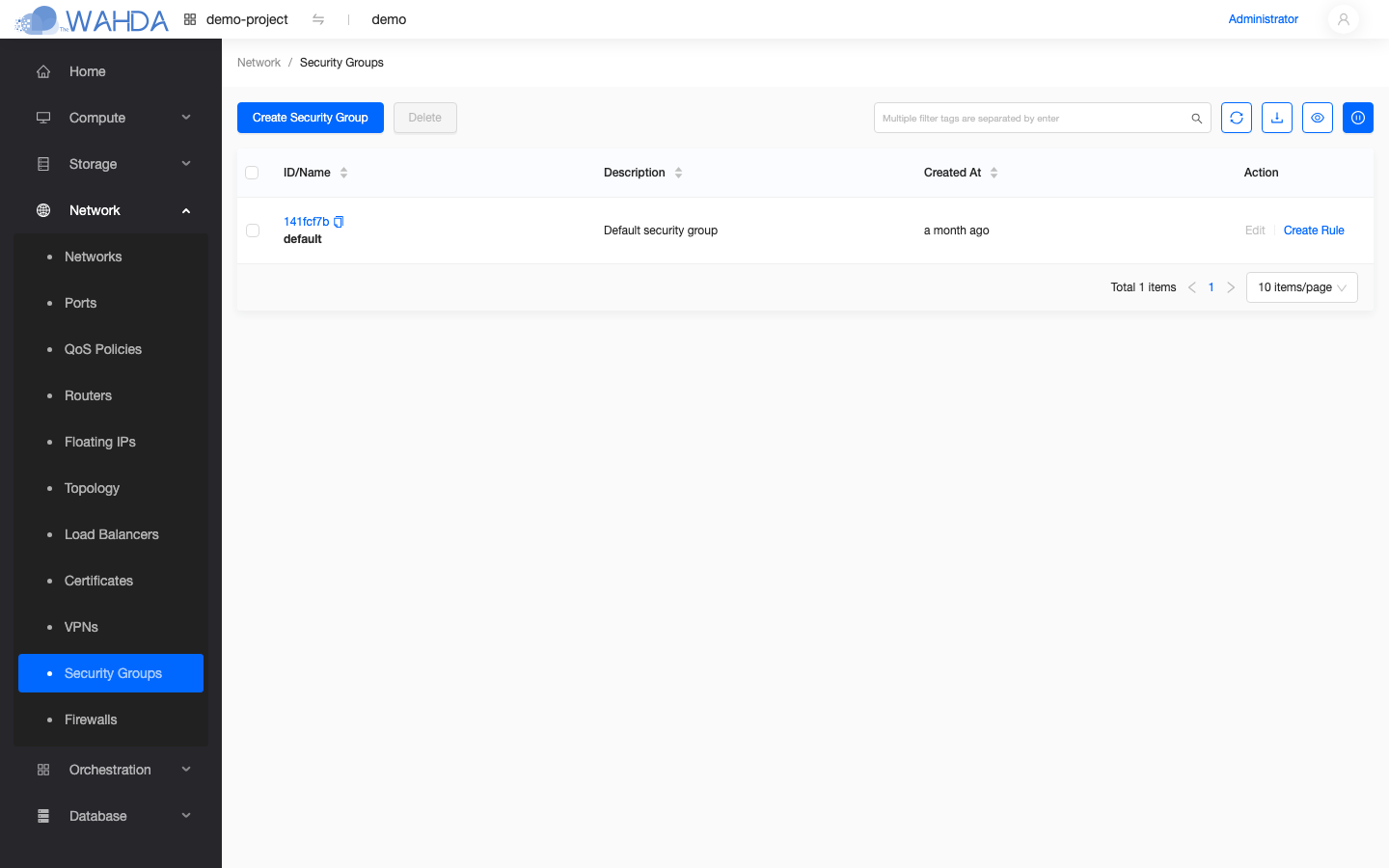

Where they live
From the left navigation: Network → Security Groups. Every project starts with one security group called default.
The header buttons: Create Security Group (new empty group), Delete (selected), Create Rule on each row (the fast path to open a port on that group).

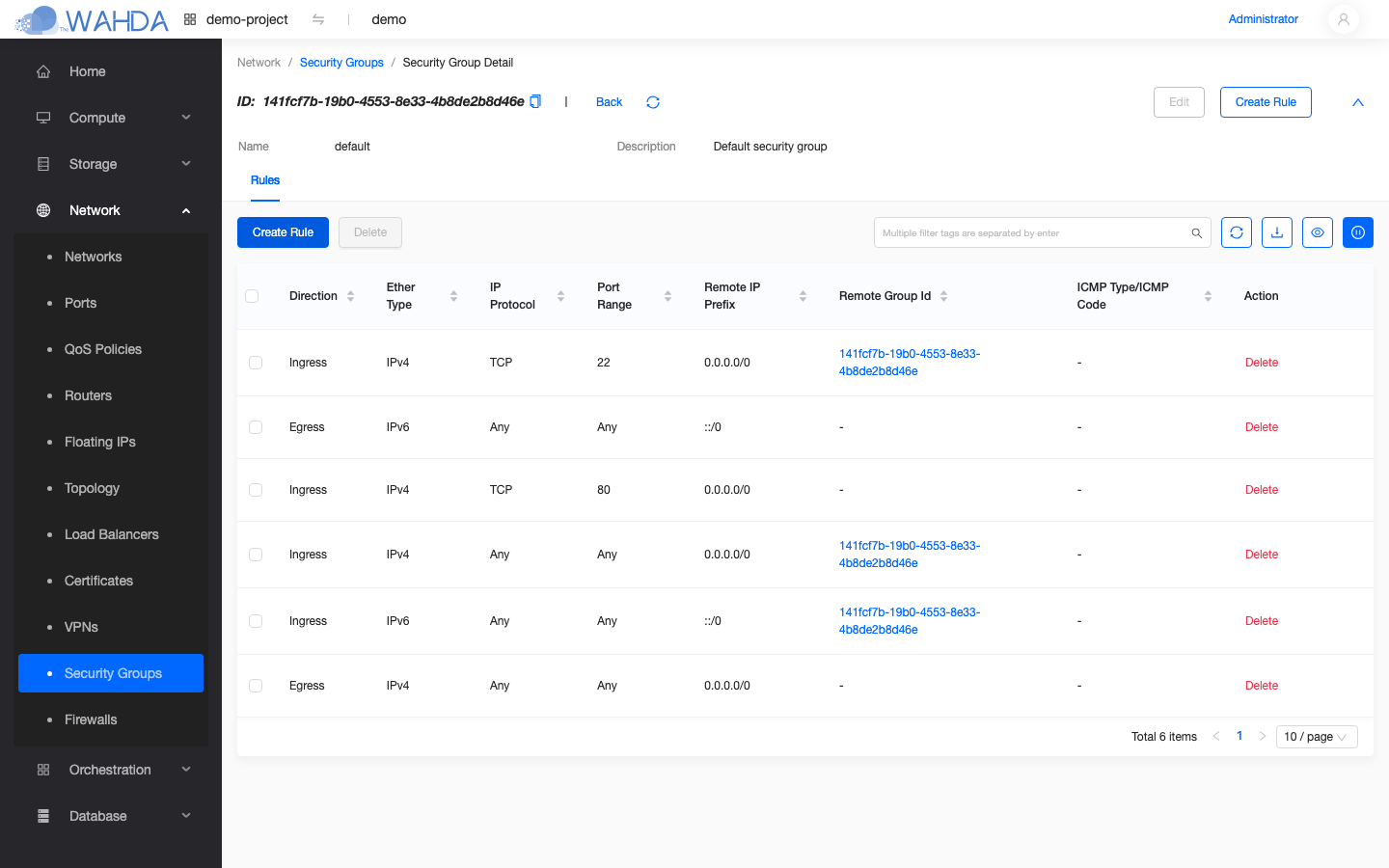

The default group's rules
Click default to open it. The Rules tab shows every rule attached to that group, one per row.
A rule is a five-column decision:
| Column | What it means |
|---|---|
| Direction | Ingress (traffic coming in) or Egress (traffic going out). |
| Ether Type | IPv4 or IPv6. Rules only apply to matching traffic. |
| IP Protocol | TCP, UDP, ICMP, or Any (any protocol). |
| Port Range | The destination port (or range like 80:100). Blank = any port. |
| Remote | CIDR (an address range) or another security group. If it's a security group, the rule matches traffic from any VM that has that group attached. |
The default group's baseline:
- All egress allowed —
Egress IPv4 Any 0.0.0.0/0andEgress IPv6 Any ::/0. Your VMs can reach anything outbound. - Peer-to-peer inbound —
Ingress IPv4/IPv6 Anyfrom the same security group. VMs sharing the default group can talk to each other on any port, but nothing else can. - No inbound from the internet. No SSH, no HTTP, no ping — until you add a rule.
That's the safe baseline. You add rules to open ports.

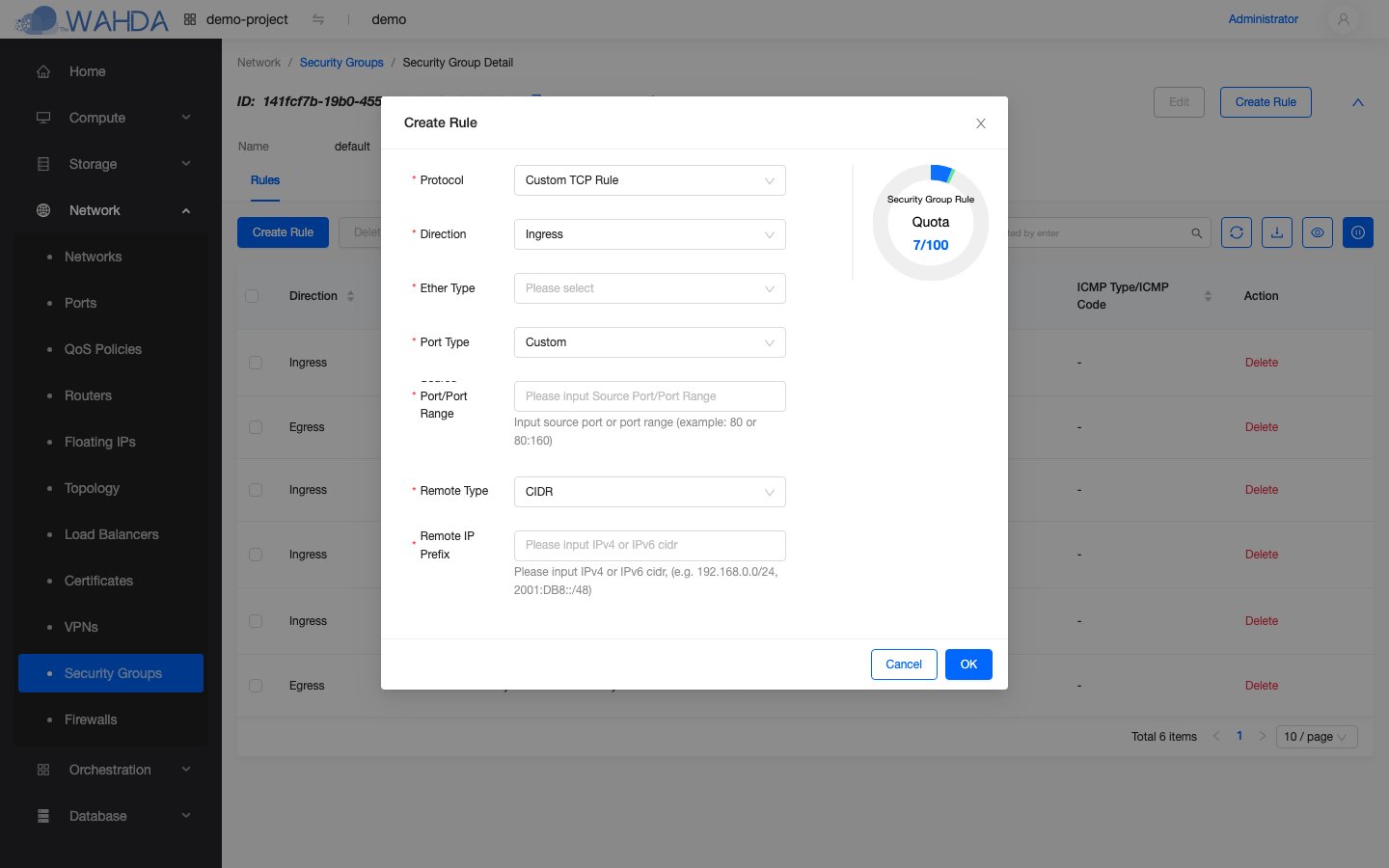

Open port 22 (SSH)
The single most common task. Click Create Rule on the default row, or open the group and click Create Rule inside.
Fill in:
| Field | For SSH |
|---|---|
| Protocol | Custom TCP Rule |
| Direction | Ingress |
| Ether Type | IPv4 (unless you're SSHing over IPv6) |
| Port Type | Custom |
| Port/Port Range | 22 |
| Remote Type | CIDR |
| Remote IP Prefix | Your source. 0.0.0.0/0 opens SSH to the whole internet; prefer your office egress or a specific range — for example 203.0.113.0/24. |
Click OK. The rule is live in seconds; the VM starts accepting SSH from the source you named.
:::caution 0.0.0.0/0 on port 22 attracts brute-force noise
It's an entire internet's worth of SSH probes. If you must open port 22 to 0.0.0.0/0, make sure your VM is key-only (no password auth), and consider putting fail2ban or sshguard in front. Better: restrict the source CIDR to your office egress and use a jump host for anywhere else.
:::
Common port openings
| Service | Protocol | Port | Notes |
|---|---|---|---|
| SSH | TCP | 22 | Ingress, restrict source to trusted CIDR if possible |
| HTTP | TCP | 80 | Ingress from 0.0.0.0/0 for a public site |
| HTTPS | TCP | 443 | Ingress from 0.0.0.0/0 for a public site |
| RDP (Windows) | TCP | 3389 | Ingress, restrict source aggressively |
| PostgreSQL | TCP | 5432 | Ingress from the application security group (peer-to-peer), not the internet |
| MySQL | TCP | 3306 | Same — peer-to-peer only |
| Ping (ICMP) | ICMP | — | Ingress from a trusted CIDR when you actually need it |
Notice the pattern: user-facing ports (80, 443, sometimes 22) open to a CIDR; internal ports (databases, caches, admin) open to another security group, not to an address range. That way, only VMs that carry the app's SG can reach the database — no matter where they sit on the network.

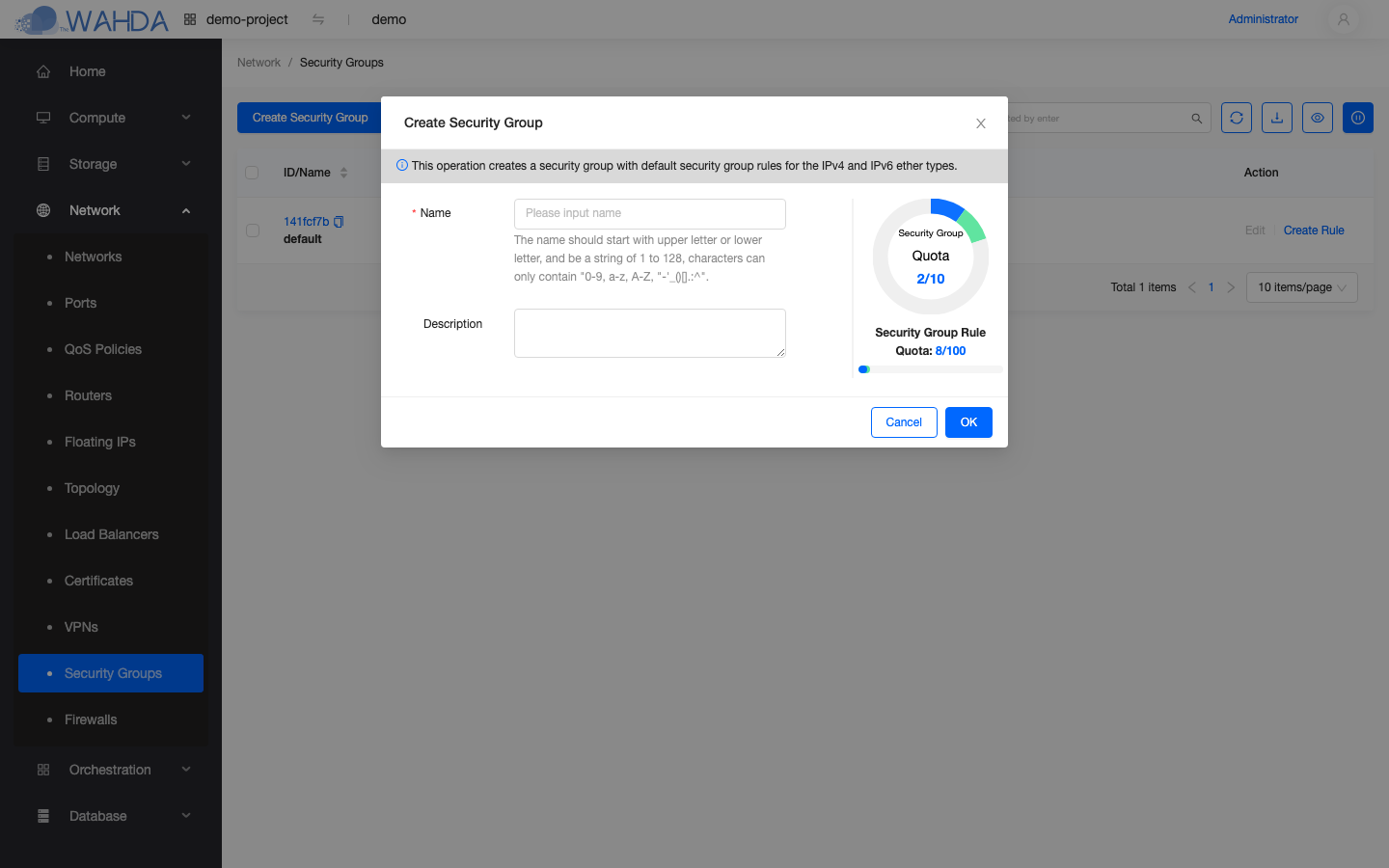

Creating a new security group
For most projects, one group per role beats a giant default with everything in it. Common shapes:
| Group | Attached to | Ingress rules |
|---|---|---|
web | Public-facing web VMs | 80, 443 from anywhere |
app | Backend app VMs | 22 from bastion, app port from web |
db | Database VMs | DB port from app only |
bastion | The single jump host | 22 from office CIDR only |
Click Create Security Group on the list page.
Fill Name and an optional Description and click OK. The new group appears in the list; open it and add rules as needed.
Attach a security group to a VM
- At launch. In Step 2 of the Create VM wizard, tick every group you want attached in the Security Groups section.
- After launch. Open the VM in Compute → Instances, click it to open detail, and use More Actions → Manage Security Group. Add or remove groups; changes apply within seconds — no reboot needed.
A VM can carry multiple security groups. The effective ruleset is the union of rules from every attached group — a packet is allowed if any attached group permits it.
Egress rules
Every group starts with an "allow all egress" baseline. Delete those rules and add restrictive ones if you want to lock down what your VMs can reach outbound — for example, "only allow egress to our object storage bucket's CIDR and the platform's DNS server."
This is genuinely useful for hardening VMs that shouldn't be phoning home, but it also breaks things — packages install, image pulls, external APIs — so plan the allow-list carefully.
Deleting a security group
You can delete a group from the list page (Delete header button). The platform blocks the delete if any VM still uses it — remove it from every VM first, then delete.
The default group can't be deleted, but you can strip its rules to nothing.
Troubleshooting
| Symptom | Where to look |
|---|---|
Connection timed out on a port you think you opened | You opened it on the wrong security group. Compare the VM's attached groups vs. the group you edited. |
Connection refused | The VM has the port open, but the service isn't listening. Not a firewall problem. |
| Rule looks correct but still no traffic | Wrong Ether Type — you allowed IPv4 but you're connecting from an IPv6 address, or vice versa. |
| App-to-database traffic dropped after refactor | You're using CIDR-based rules where a peer group would be more resilient. Switch to "Remote: security group app". |
Next steps
- Create a VM → — attach the right groups in Step 2.
- Floating IPs → — make the VM reachable from the internet.
- Connect over SSH → — the reason you opened port 22 in the first place.
